YAMAHA YZ125X 2024 — Full Specifications, Performance Review, and Market Comparison

The YAMAHA YZ125X 2024 is a purpose-built cross-country off-road motorcycle designed for GNCC, enduro, and trail racing. Based on Yamaha’s legendary YZ125 motocross platform, the YAMAHA YZ125X 2024 is tuned specifically for woods riding, long-distance competition, and technical terrain. It combines a lightweight aluminum frame, a responsive two-stroke engine, race-ready KYB suspension, and off-road–focused gearing, making it one of the most competitive 125cc off-road motorcycles in its class.

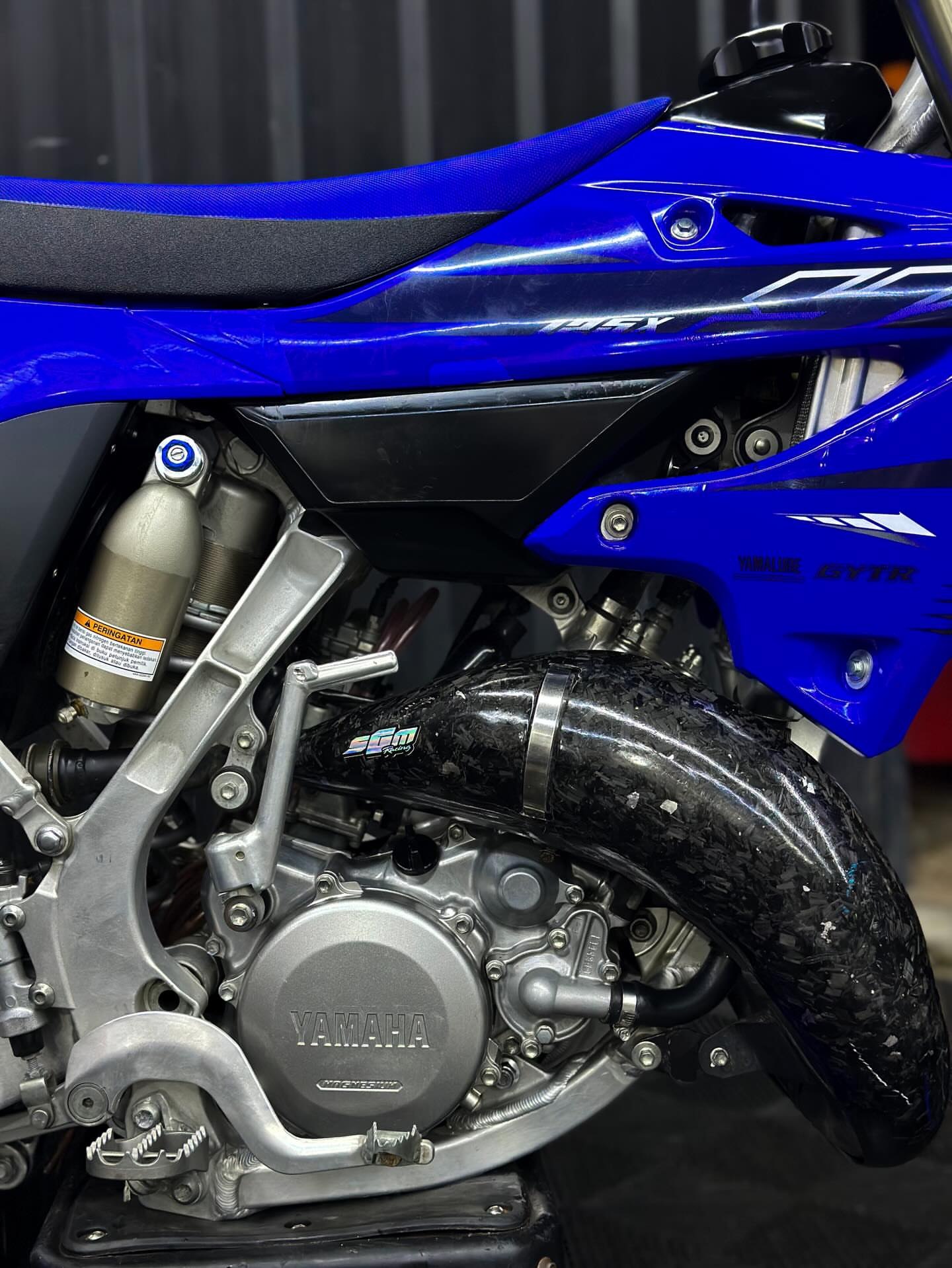

Engine and Powertrain

The YAMAHA YZ125X 2024 is powered by a 125cc liquid-cooled, single-cylinder, two-stroke engine with reed-valve induction. Fuel delivery is handled by a Hitachi Astemo Keihin PWK38S carburetor, providing crisp throttle response and consistent performance across varying terrain.

Key engine specifications:

Displacement: 125 cc
Bore x Stroke: 54.0 mm x 54.5 mm
Compression Ratio: 7.8–10.2:1
Fuel System: Keihin PWK38S carburetor
Transmission: 6-speed wide-ratio
Clutch: Multiplate wet clutch
Starting System: Kickstarter
Fuel Capacity: 1.8 gallons (6.81 L)

The YAMAHA YZ125X 2024 is tuned for smoother low-end torque and improved lugging ability compared to the motocross-focused YZ125, making it better suited for technical trails and endurance racing. Moto Trips+1

Chassis, Frame, and Suspension

Built around a lightweight aluminum semi-double cradle frame, the YAMAHA YZ125X 2024 offers an ideal balance of rigidity and flex for precise handling and stability over rough terrain.

Suspension setup includes:

Front Fork: KYB Speed-Sensitive System inverted fork, 11.8 inches (300 mm) travel
Rear Shock: KYB single shock with linkage, 12.4 inches (315 mm) travel
Fully adjustable compression and rebound damping

This cross-country–tuned suspension provides better comfort over roots, rocks, and long trail sections while maintaining race-level control.

Braking System, Wheels, and Tires

The YAMAHA YZ125X 2024 features a high-performance braking system designed to deliver strong stopping power with reduced unsprung weight.

Brake and wheel specifications:

Front Brake: 270 mm hydraulic disc
Rear Brake: 240 mm hydraulic disc
Front Tire: 80/100-21 Dunlop Geomax MX33F
Rear Tire: 110/100-18 Dunlop Geomax MX33
Rear Wheel Size: 18-inch (optimized for off-road traction)

The 18-inch rear wheel enhances traction and durability in rocky and muddy environments, reinforcing the YAMAHA YZ125X 2024’s off-road advantage.

Dimensions, Weight, and Ergonomics

Designed to be lightweight yet stable, the YAMAHA YZ125X 2024 is easy to maneuver in tight trails while remaining planted at speed.

Key dimensions:

Seat Height: 38.2 inches (970 mm)
Wheelbase: 57.3 inches (1455 mm)
Ground Clearance: 14.0 inches (351 mm)
Wet Weight: 212 lb (96.2 kg)
Overall Size (L x W x H): 84.8 in x 32.5 in x 50.8 in

Its ergonomic layout supports aggressive riding positions and long-duration comfort, ideal for competitive cross-country use.

Off-Road–Specific Features

The YAMAHA YZ125X 2024 includes several GNCC- and trail-focused upgrades over the standard YZ125:

Wide-ratio 6-speed transmission
Cross-country–tuned suspension valving
Softer, more controllable power delivery
Kickstand for trail practicality
Sealed O-ring chain
Optimized YPVS tuning for smoother torque

These refinements make the YAMAHA YZ125X 2024 more forgiving and efficient in endurance racing and technical terrain.

Market Comparison — Related 125cc Off-Road Models

YAMAHA YZ125X 2024 vs Yamaha YZ125 (Motocross)
The YZ125 is tuned for track performance with sharper power delivery and stiffer suspension, while the YAMAHA YZ125X 2024 is optimized for woods riding, trail endurance, and smoother low-end torque.

YAMAHA YZ125X 2024 vs KTM 125 XC
The KTM 125 XC offers similar off-road intent with a more aggressive chassis feel, but the Yamaha stands out for long-term reliability and predictable handling.

YAMAHA YZ125X 2024 vs Husqvarna TE 150
The Husqvarna TE 150 provides slightly more displacement and torque, but the YAMAHA YZ125X 2024 remains lighter, simpler to maintain, and more cost-efficient.

Final Verdict

The YAMAHA YZ125X 2024 is one of the most refined and reliable 125cc cross-country dirt bikes available today. With its lightweight chassis, trail-optimized suspension, durable components, and proven two-stroke performance, the YAMAHA YZ125X 2024 is an excellent choice for riders seeking a competitive edge in GNCC racing, enduro events, and serious trail riding.
